Custom jigsaw puzzle with square pieces from any design
A customizable jigsaw puzzle printable on your 3D printer, with any design you want. Pieces are always square, so the number of pieces and exact size scale proportionally with the square pieces.
Custom SVG design: import any design onto the puzzle face
Adjustable piece count: choose 2 to 16 pieces per row; pieces are always square
Colored back option: set the background as a different color to make assembly easier
Extra challenge mode: no background leaves white pieces on both sides
Five export variants: FaceDown, FaceUp, Sunken, Frame, and Stand (the Sunken version must be printed face up)
Frame and stand: print an optional matching frame and display stand for the finished puzzle

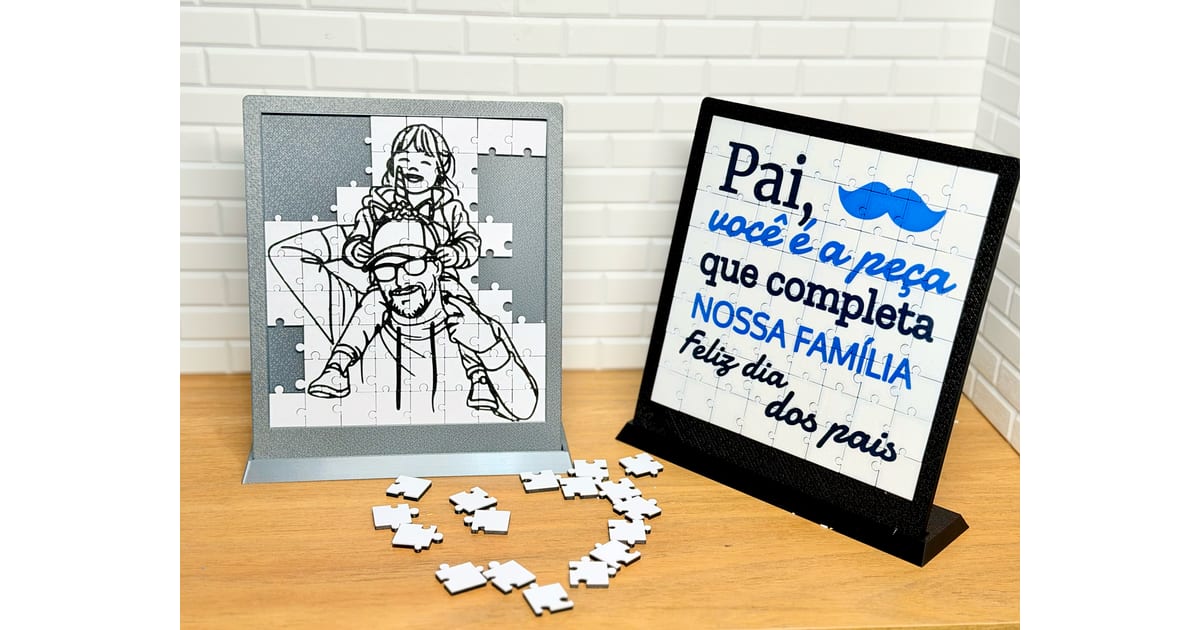

Puzzle 170x170 (fathers day): 5h - 88g
Base: 2h30 - 64g
Stand: 2h10 - 51g
Use your preferred AI model with this prompt to turn a photo into puzzle-ready line art:
Create a minimalist one-line illustration based on the photo. Use clean, smooth, uniform black strokes with no shading, no color, and no sketch texture. Remove background. Keep the subjects proportioned but simplify them into elegant contour outlines. Omit all facial features except for a simple implied smile if needed. Emphasize key shapes—hair flow, glasses, clothing folds, and posture—using as few expressive curves as possible while keeping everything connected in one continuous line. Preserve the pose and emotional expression through silhouette and gesture only. Keep the mouth simple but with a natural expression. Make the lines 2mm thick.
Recommended Settings:
Layer Height: 0.16mm (High Quality)
Order of Walls: Outer/Inner
Initial Layer Line Width: 0.5mm
Top Layers: 6
Bottom Layers: 4
Infill Pattern: Gyroid
Outer Wall Speed: 60mm/s
Inner Wall Speed: 150mm/s
Infill Speed: 200mm/s
Supports: Not required
Print Time & Material: A 17x17 puzzle with 3 colors uses approximately 90g of PLA and takes 6h to print.
Print Time:
Puzzle 170x170 (fathers day): 5h - 88g
Base: 2h30 - 64g
Stand: 2h10 - 51g
Tags: puzzle, jigsaw, customizable, toy, svg, coloring, kids, gift
